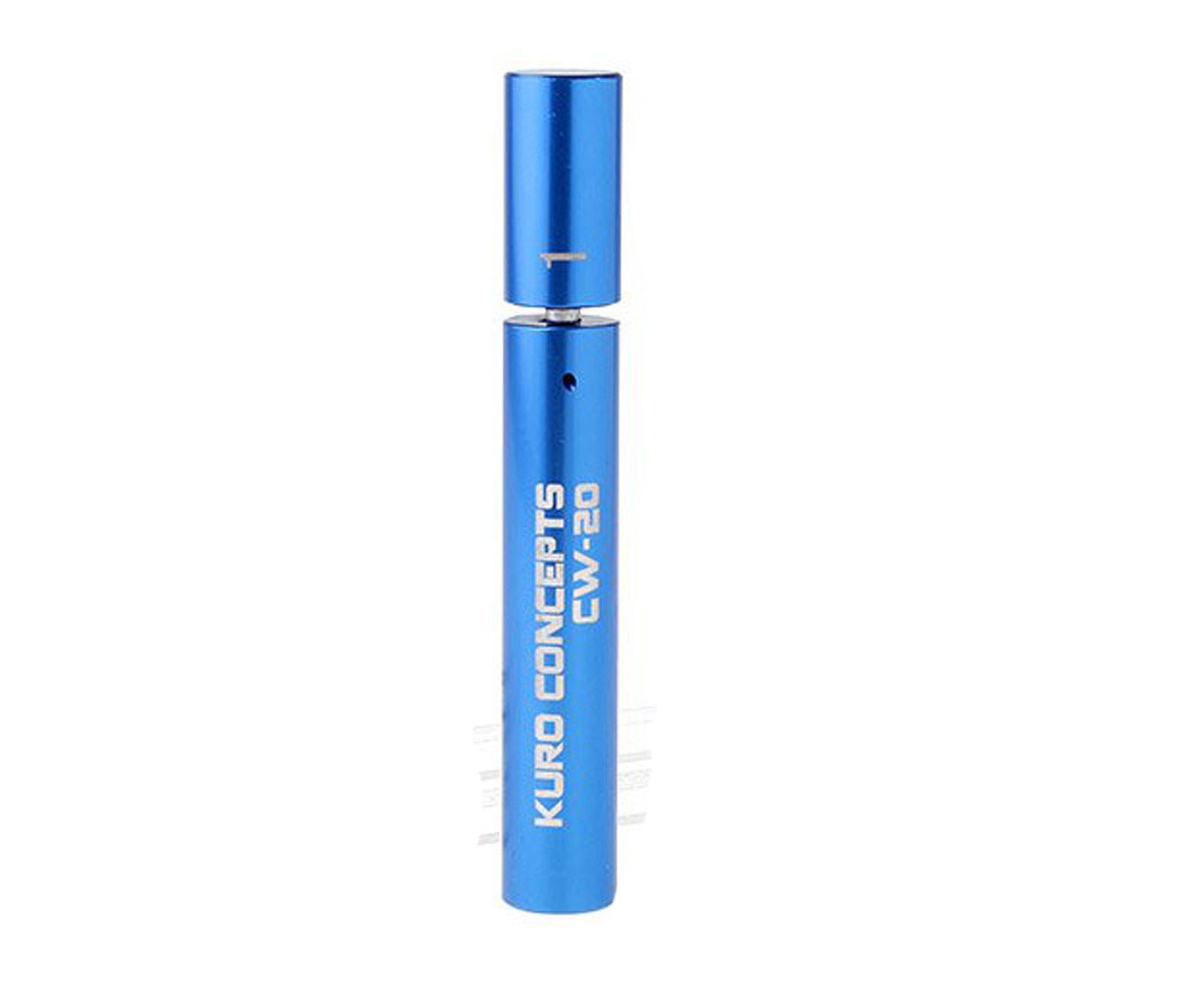

Kuro Concepts Koiler Wire Coiling Tool - 2mm, 2.6mm, 3mm Kanthal (CW-20, CW-25, CW-30)
Regular price
£4.99
Sale price
£4.99
Regular price
Unit price
Tax included.
Kuro Concepts Koiler Wire Coiling Tool - 2mm, 2.6mm, 3mm Kanthal (CW-20, CW-25, CW-30)
PRODUCT DESCRIPTION
RETURN POLICY
About this item
Revolutionary
patent pending micro coiling technology, making coils now is a breeze.
Simply trap your wire, rotate the top cap, and you get that perfect
micro coil in seconds, each and every time!
Light weight and portable, perfect for traveling, and on the go!
Unique styling with stylish colors, each color represent different coil size.
CW-25 - Makes 2.6mm coils, CW-30 - Makes 3mm Coils.
By far the most innovative and revolutionary products of the year!
The following link gives a better idea of how to use it:
https://www.youtube.com/watch?v=FtRgeIYwTNA
Instructions:
- Insert the socket screw into the appropriate hole of the winder section:
For 26 and over gauge wire, use screw hole number 1
For 20 and over gauge wire, use screw hole number 2
- Insert wire through hole on the side of the handle. Leave about 1/2" of the wire protruding from the hole.
- Hold the end of the wire against the handle so it won't pull through
- Pull the loose end of the wire around the shaft
- Slide the winder section over the shaft with the pin facing toward the handle
- Turn the winder section so that it catches the wire and starts wrapping it around the shaft.
- Keep light pressure against handle while winding. Excessive pressure will force smaller gauge wire to wrap over itself
- When finished, remove winder and straighten the wire end that protrudes from the hole in the handle
- Push up on the wire to slide coil up. Carefully grab the coil at the bottom to slide it off the shaft
5 Meter Kanthal is also available in the same listing of 24 / 26 / 28 / 30 GA. This is loose Kanthal taken off a larger spool.
Light weight and portable, perfect for traveling, and on the go!
Unique styling with stylish colors, each color represent different coil size.
CW-25 - Makes 2.6mm coils, CW-30 - Makes 3mm Coils.
By far the most innovative and revolutionary products of the year!
The following link gives a better idea of how to use it:
https://www.youtube.com/watch?v=FtRgeIYwTNA
Instructions:
- Insert the socket screw into the appropriate hole of the winder section:
For 26 and over gauge wire, use screw hole number 1
For 20 and over gauge wire, use screw hole number 2
- Insert wire through hole on the side of the handle. Leave about 1/2" of the wire protruding from the hole.
- Hold the end of the wire against the handle so it won't pull through
- Pull the loose end of the wire around the shaft
- Slide the winder section over the shaft with the pin facing toward the handle
- Turn the winder section so that it catches the wire and starts wrapping it around the shaft.
- Keep light pressure against handle while winding. Excessive pressure will force smaller gauge wire to wrap over itself
- When finished, remove winder and straighten the wire end that protrudes from the hole in the handle
- Push up on the wire to slide coil up. Carefully grab the coil at the bottom to slide it off the shaft
5 Meter Kanthal is also available in the same listing of 24 / 26 / 28 / 30 GA. This is loose Kanthal taken off a larger spool.
